Sending an SMS using Notifications REST API with Postman

Let’s see how to send an SMS using Notifications REST API with Postman.

OpenText Notifications brings email, SMS, push, voice and fax messaging channels together into a single, cloud-based messaging platform, eliminating siloed communication services. Whether sending one or millions of messages, Notifications makes it easy to deliver personalized communications to customers’ channel of choice to strengthen relationships, expand visibility and fuel sales.

NOTE: Notifications also provides a Notifications SOAP API. Currently (August 2023), SOAP API exposes more functions than the REST API.

Postman

We’ll use Postman, an API platform for building and using APIs, to invoke Notifications REST API to send an SMS.

Recommended reading: Welcome to Postman

Send SMS

POST - /mra/v1/outbound/sms

POST - /mra/v1/outbound/sms: This API call submits a request to send a SMS. It requires use of pure JSON request body wherein the SMS metadata (recipient SMS address and user-specified options) and text to be sent in SMS are part of the same JSON construct.

Send SMS with Postman

Let’s create a new Collection. Just follow these steps:

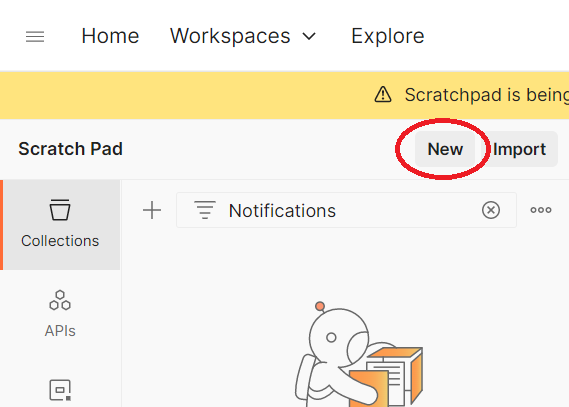

• Click on New button

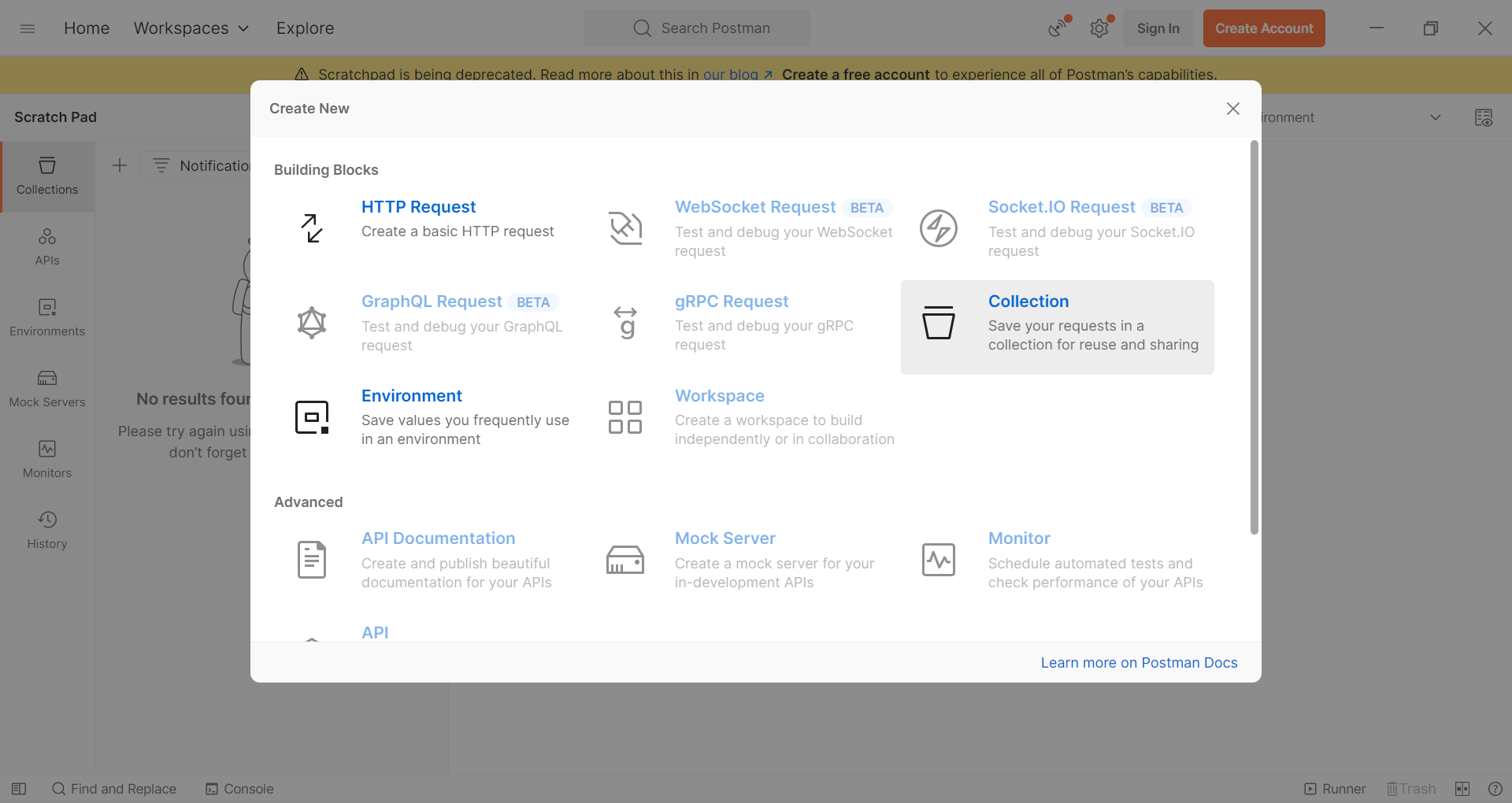

• Click on Collection

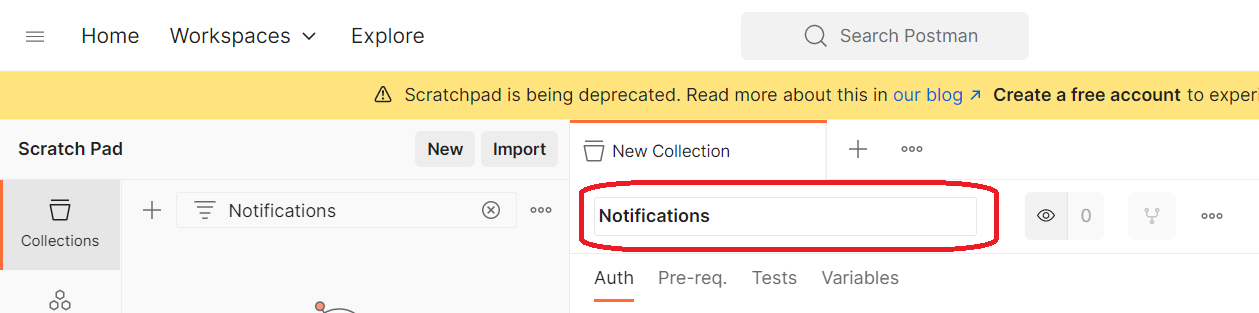

• Provide a Name for the new collection, i.e. Notifications

• Click on Add a request
• Provide the basic request information:
  • Name: Send SMS
  • Method: POST
  • URL: https://api.eu.cloudmessaging.opentext.com/mra/v1/outbound/sms
• Click on Authorization tab

Authentication Either HTTP Basic authentication or OAUTH2 authorization is to be used for all requests.

NOTE: In this example we’ll use basic authentication.

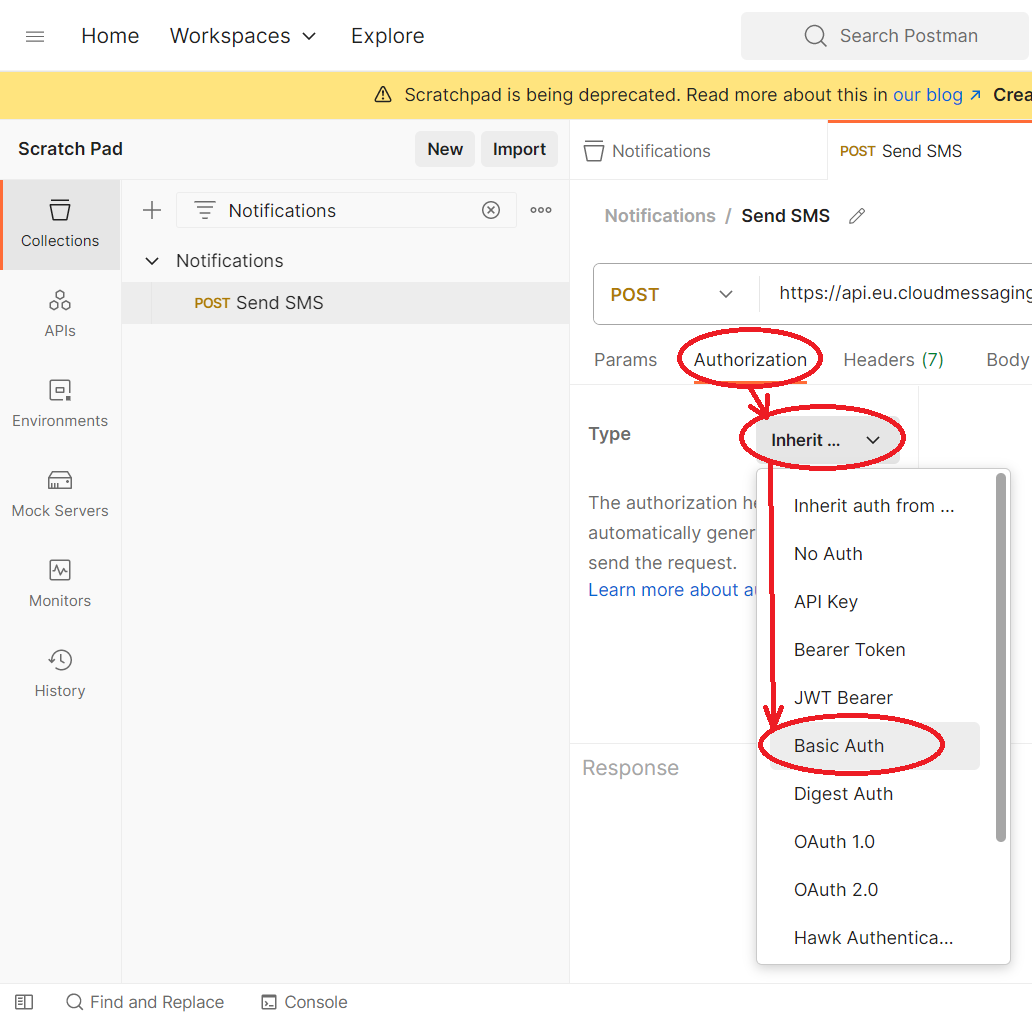

• Select Basic Auth on the Type drop-down list

• Provide the authentication information:
  • Username
  • Password
• Click on Bodytab
  • Click on raw
  • Select JSON from the drop-down list

• Paste this JSON into the Body tab

{
    "options": {
        "billing_code": "SUMMER-PROMO",
        "customer_reference": "JoaquinOnSoft"
    },
    "reports": {
        "delivery_report": {
        "type": "none",
        "report_destinations": [
            {
                "email": "joaquin@joaquinonsoft.com"
            }
        ]
        }
    },
    "destinations": [
        {
            "ref": "Joaquin-REF",
            "sms": "0034666999999"
        }
    ],
    "sms_text": "SMS from notifications REST API using Postman"
}

NOTE: You can change different tags like email, sms, or sms_text according to your needs

• Click on Save button
• Click on Send button

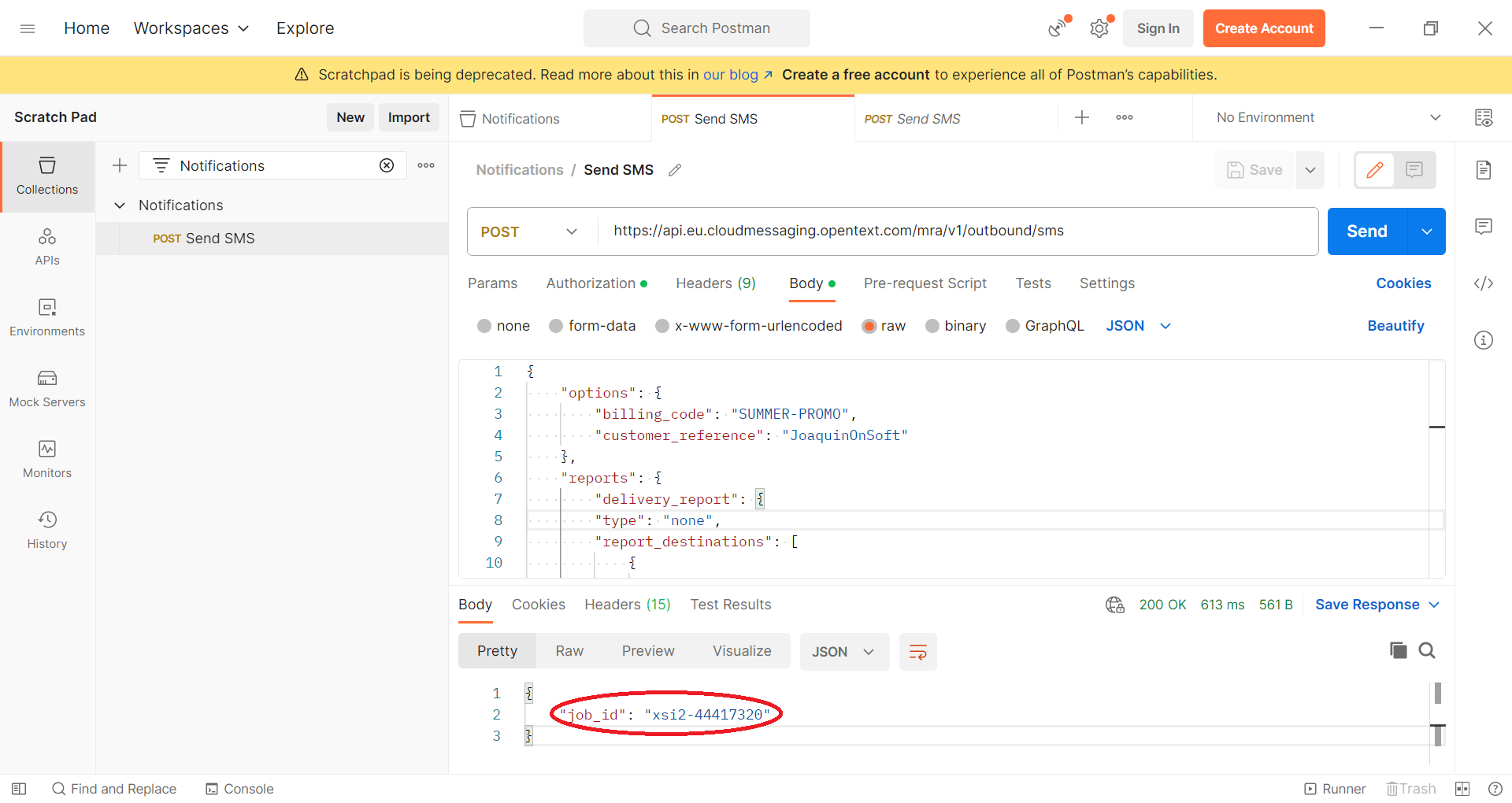

The request is done and we receive the Notifications Job Identifier that we can use to track it.

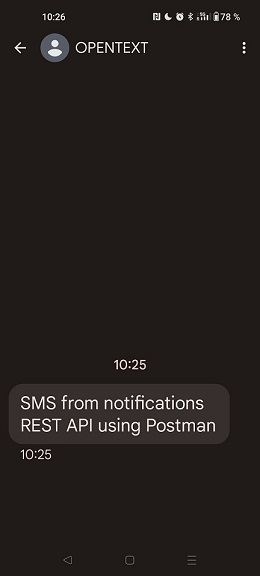

After a few seconds we receive the SMS in our mobile phone.

SMS Status

Once SMS request has been successfully accepted and a job ID is returned, [GET ]- SMS Status method allows users to request the information about the job as it is being processed by the OpenText messaging service.

Let’s follow these steps to check the SMS status with Postman:

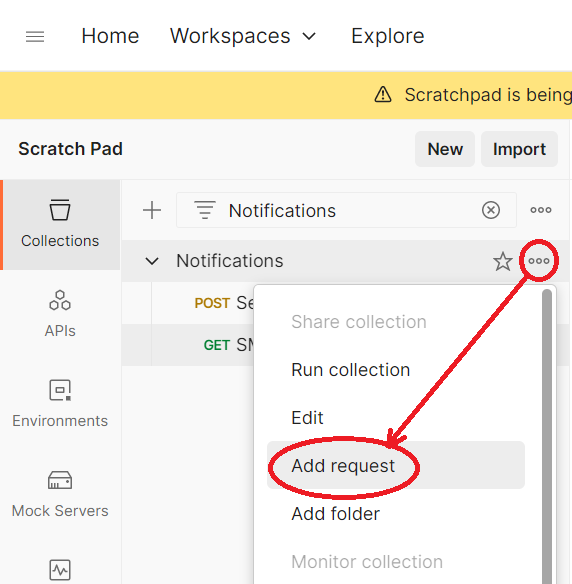

• Click on 3 dots icon, close to the Notifications collection
• Select Add request on the drop-down list

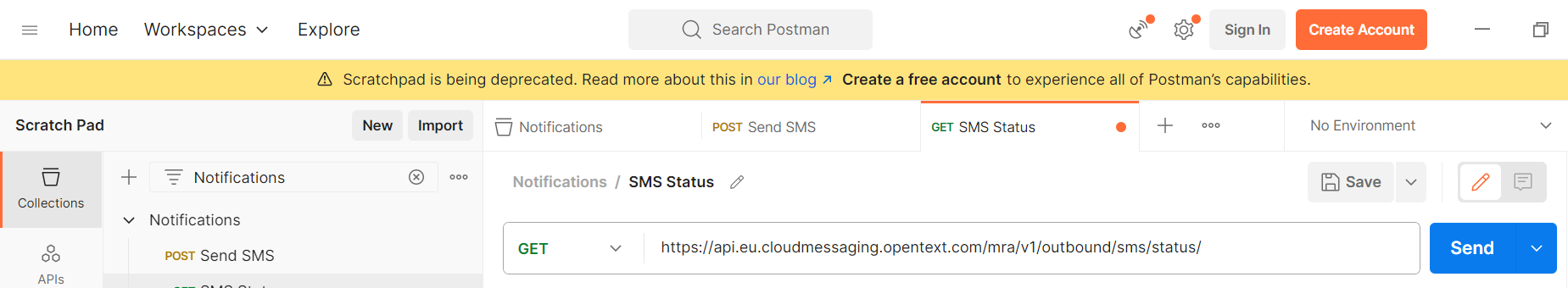

• Provide the basic request information:
  • Name: SMS Status
  • Method: GET
  • URL: https://api.eu.cloudmessaging.opentext.com/mra/v1/outbound/sms/status/

• Click on Authorization tab
• Select Basic Auth on the Type drop-down list
• Provide the authentication information:
  • Username
  • Password
• Click on Params tab
• Add a new param:
  • Key: job_id
  • Value: xsi2-44417320 (In our example)
• Click on Save button
• Click on Send button

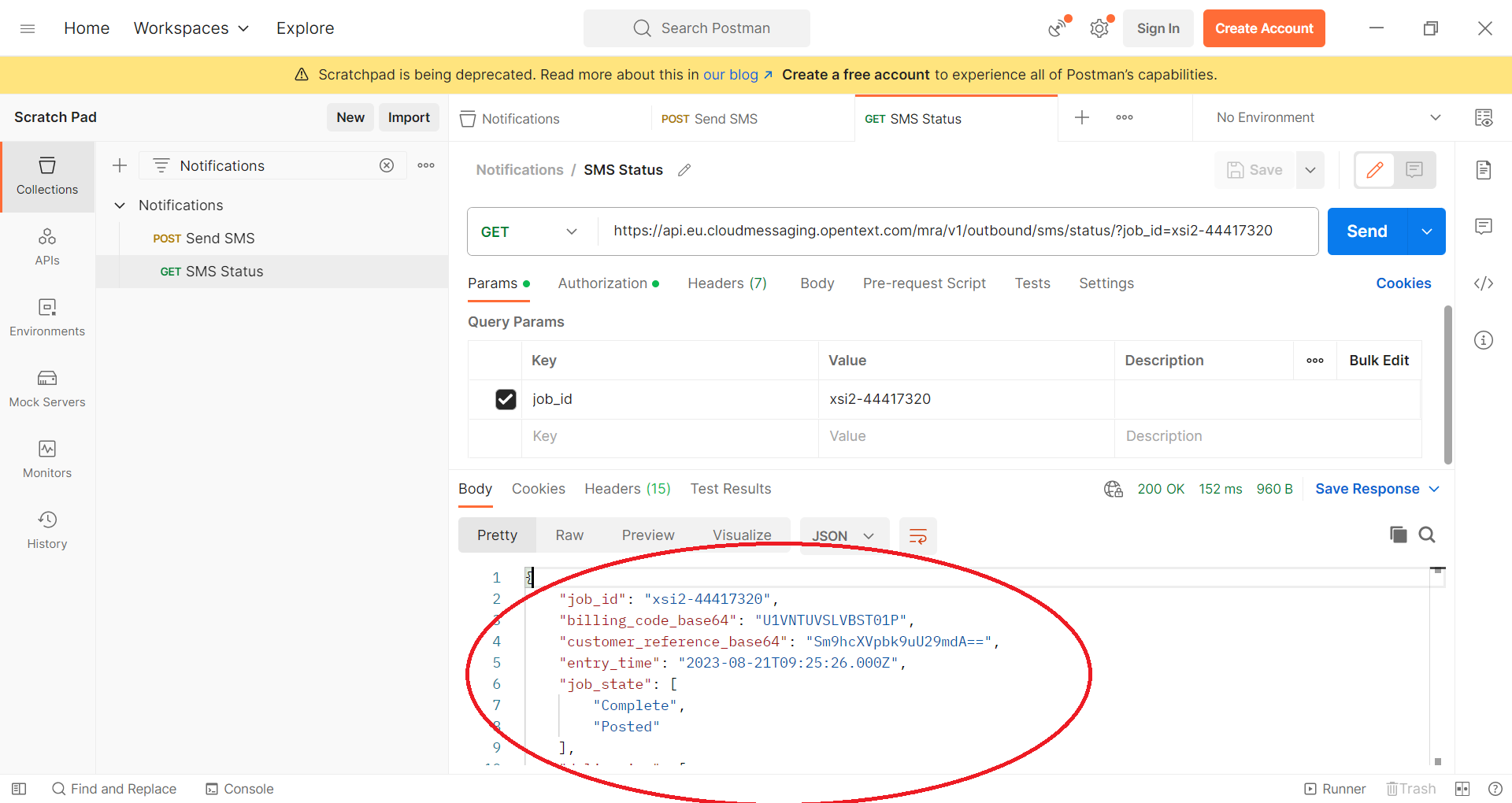

The response, in our examples, looks like this:

{
    "job_id": "xsi2-44417320",
    "billing_code_base64": "U1VNTUVSLVBST01P",
    "customer_reference_base64": "Sm9hcXVpbk9uU29mdA==",
    "entry_time": "2023-08-21T09:25:26.000Z",
    "job_state": [
        "Complete",
        "Posted"
    ],
    "deliveries": [
        {
            "ref_base64": "Sm9hcXVpbi1SRUY=",
            "sms": "0034626790770",
            "delivery_attempts": [
                {
                    "state": "Sent",
                    "first_attempt": "2023-08-21T10:25:26.000Z"
                }
            ],
            "events": {
                "sms_delivery_events": [
                    {
                        "event_time": "2023-08-21T10:26:00.000Z",
                        "status": "Confirmed"
                    }
                ]
            }
        }
    ]
}

Check job status

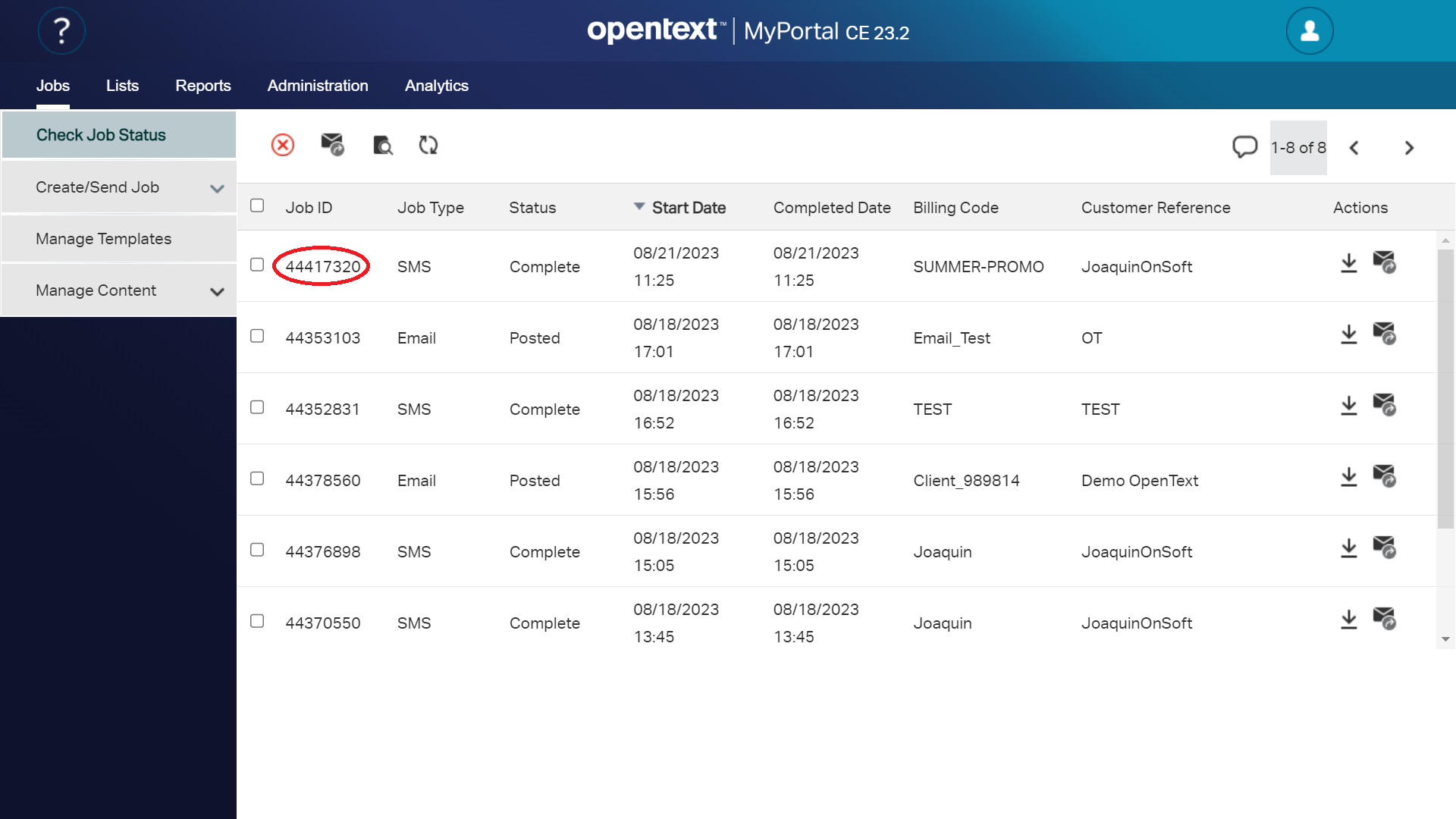

We can also use MyPortal to check the job status. You just need to browse to Jobs » Check job status and look for the Job Identifier returned by Send SMS response, i.e. 44417320.
